    Tubing Head Spool seal the annular space between tubing and casing for injection and well clean-up operations

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : Tubing Head
    Certification : API
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 100 pcs per month
    Delivery Time : Within 10 days after deposit
    • Product Details
    • Company Profile

    Tubing Head Spool seal the annular space between tubing and casing for injection and well clean-up operations

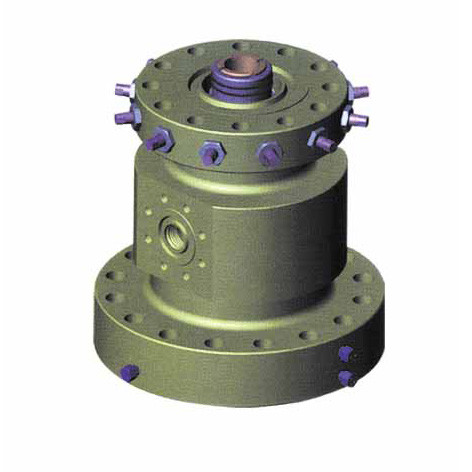

    Tubing head Spool

    Tubing head configuration

    Tubing head is usually a spool with both flanged ends. It is set on the top flange of casing head to hang tubing hanger and seal the annular space between the tubing string and intermediate casing, consisting of tubing head spool and tubing hanger.


    Functions

    • Hang the tubing string inside well;
    • Seal the annular space between tubing and casing;
    • Give a crossover to connect casing head downwards and x'mas tree upwards;
    • The tubing head spool is provided with both side outlets for injection and well clean-up operations


    ItemComponentQtyMaterialRemark
    1Grease Fitting6Assy.
    2BT Seal Ring2NBR
    3Tubing Head Spool14130
    4Tubing Hanger14130
    5Lockdown Screw124130
    6Packing Nut125140
    7Packing60PTFE
    8Packing Washer24410
    Quality Tubing Head Spool seal the annular space between tubing and casing for injection and well clean-up operations for sale
