    API XQ89/3YC Drill Spare Parts Hydraulic Workover Drilling Rig Tongs

    Ask Lasest Price
    Brand Name : TR Solids Control
    Model Number : TRZQ, TRTQ, TRXQ
    Certification : API Certificate, ISO Certificate
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 5000 pcs per month
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    API XQ89/3YC Drill Spare Parts Hydraulic Workover Drilling Rig Tongs

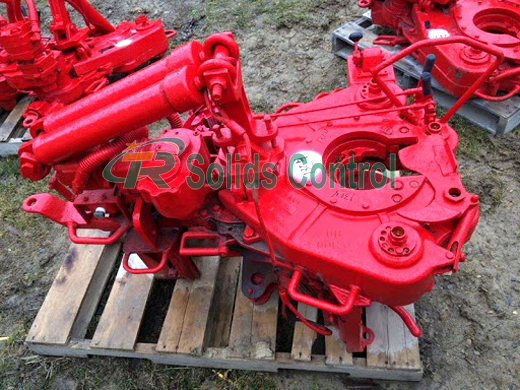

    API Standard XQ89/3YC Workover Hydraulic Power Tong XQ


    Product Introduction


    Hydraulic Casing Tong is also called Casing Power Tong. Our TQ series casing power tongs are widely used for making-up or breaking-out of casings or pipes. The casing tong features high-efficiency, safety, reliability, labor-saving, and can ensure connection quality. Tong head is designed as open and is fitted with two jaws which can ensure reliable gripping. Air tyre clutch is utilized as gear shifting mechanism, so it is possible to change gear under running. The series of casing tongs can be configured with torque device to perform computer monitoring and managing on pressure, torque and rounds. The casing tong has been granted with National Invention Patent. The casing tongs are designed and manufactured according to SY/T5074 and API Spec 7K Specification for Drilling Equipment.


    This series power tong is used for quick make-up/break-up in well service operations. The tong is equipped with hydraulic backup tong and use inner curved cam to clamp. This series power tong are designed and manufactured according to industrial standard SY/T5074 and API Spec 7k “Specification for Drilling and well servicing Equipment".


    Main Advantages of Hydraulic Casing Power Tong


    • Tong head is designed as open and is fitted with two jaws which can ensure reliable gripping.
    • The casing tongs are designed and manufactured according to SY/T5074 and API Spec 7K.
    • The casing tong features high-efficiency, safety, reliability, labor-saving, and can ensure connection quality.
    • Air tyre clutch is utilized as gearshifting mechanism, so it is possible to change gear under running. The series of casing tongs can be configured with torque device to perform computer monitoring and managing on pressure, torque and rounds.
    • Heads are designed “open” type and can freely clamp and escape from the casing. It is safe, reliable and easy to handle with high mobility.
    • Can be connected to computer controlling units and can serve as ideal well mechanical tools for surface operation.

    Parameters of Hydraulic Casing Power Tong


    ModelZQ203-125ZQ203-100ZQ203-100AZQ203-100BZQ162-50ZQ127-25
    Size
    rang
    mm127-203121-203121-203121-20385-16265-127
    in31/2
    coupling
    -8body
    31/2
    coupling
    -8body
    31/2
    coupling
    -8body
    31/2
    coupling
    -8body
    23/8
    coupling
    -5body
    23/8
    coupling-31/2body
    Max.torquekN.M1251001001005025
    ft.lbf922007375073750737503688018440
    Speed of tong Hi.rpm404040406065
    Speed of tong To.rpm2.72.72.72.74.110.5
    Hydraulic system pressure ratiginMpa2016.616.616.61612
    Psi290024002400240023201740
    Hydraulic system pressure ratiginL/min114114114114120180
    gpm303030303248
    Stoke of shifting cylindermm150015001500/10001000
    in595959/39.439.4
    Moving distance of tongmm///0-3000//
    in0-59
    Lifting diatance of tongmm//0-4850-1800//
    in0-190-31.5
    Overall dimensionsmm1720
    *1050
    *1750
    1700
    *1000
    *1400
    1700*
    1000
    *1400
    1750*
    1650
    *2050
    1570*
    800
    *1190
    1110*
    790
    *820
    in68*
    41*69
    67*
    39*55
    67*
    39*55
    69*
    65*81
    62*
    31*47
    44*
    31*32
    WeightKg26002400250032501500620


    Xi'An TianRui Petroleum Machinery Equipment Company Limited was established in 2010 and located in Xi'an city, China. We have the specialized technicians, senior engineers and professional marketing team. The company is committed to develop, manufacture and supply a variety array of oilfield equipments, the main products include : Petroleum equipments & tools such as drilling equipments, solid control equipment, production equipments, tubular goods, wellhead equipments, downhole equipments, well control equipments, cementing tools etc.; Petrochemicals.


    Competitive Advantages


    1. We offer high quality products at competitive price.
    2. Shortest delivery time.
    3. Flexible payment terms.
    4. Timely after-sale service.
    5. Most of our equipment can be replaceable with international brands.
    6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
